Page Sense

Fire Protection Water Storage Tanks

FIRE PROTECTION WATER STORAGE TANKS

Above Ground, Corrugated Steel

​by Steel Core Tank

Above Ground, Corrugated Steel

Steel Core Tank is the next generation of design, engineering, and manufacturing of water storage tanks for fire protection. Each tank is individually engineered for its application. Georgia Water Tanks also provides Claval altitude valves, fire department connections, as well as other controls, for a coordinated solution to fire protection water storage needs.

Corrugated Steel Above-Ground Tanks are often the most economical and longest lasting form of storage for fire protection water. Fire protection tanks from Steel Core Tanks are manufactured according to National Fire Protection Association (NFPA-22), Factory Manual (FM), and American Water Works Association (AWWA) standards. SCT offer a huge range of approved tanks that conform to NFPA-22 requirements.


The modular bolted design allows for a fast and easy installation in all types of weather and requires no field coating, welding, or cranes. The polymer liner design is less expensive intially, requires less routine maintenance, and is easier, faster, and less expensive to repair than spray coatings.

Above Ground, Corrugated Steel
Above Ground, Corrugated Steel
Above Ground, Corrugated Steel

All Steel Core Tanks water storage tanks are engineered to these minimum standards:

  • 100% Class 1 Structural AMERICAN MADE STEEL
  • G-115 hot dipped galvanization
  • Designated bottom wall sheets to better distribute weight
  • Full tank geotextile preliner
  • 30 mil PVC flexible membrane liner
  • Standard ASTM flanges

All Steel Core Tanks fire protection water storage tanks have these additional features:

  • Heavy-duty seismic anchors EXCEED the minimum standards.
  • Side-access manway for faster and SAFER confined space access.
  • Steel flanges, NOT PVC FITTINGS for more DURABILITY.
  • Structural design to RISK LEVEL IV STANDARDS.

Above Ground, Corrugated Steel

​by Pioneer Water Tanks

Pioneer Water Tanks
Pioneer Above Ground Corrugated Steel
Pioneer Above Ground Corrugated Steel

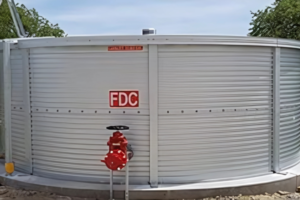

Pioneer Above Ground Corrugated Steel Fire Protection

Pioneer Water Tanks has supplied water tank solutions for all types of farming, domestic and agricultural applications since 1988.

Designed for harsh and demanding conditions, Pioneer Water Tanks are manufactured using strong and durable, fully recyclable 100% Zincalume® or Colorbond® steel. Our range of tanks are available from 5,000 to 1,000,000-Gallons in our standard range or can be custom-built up to one million gallons.

Our exclusive North American dealer and project management network facilitate sales, service and, installations. We offer a full range of accessories and fittings so that your tank meets your needs and performs to the highest standards.

Pioneer Water Tanks offer a heavy-duty configurable water storage solution for even the most demanding projects. Built from high-quality Zincalume® steel and engineered to specifications, Pioneer Water Tanks are among the most durable in the industry. This claim is backed by a competitive, per-project manufacturer’s warranty on the tank body, liner, and accessories where conditions are met.

Pioneer Above Ground Corrugated Steel
Pioneer Above Ground Corrugated Steel
Pioneer Above Ground Corrugated Steel
Pioneer Above Ground Corrugated Steel
Pioneer Above Ground Corrugated Steel

Pioneer Tanks are engineered to these minimum standards:

  • Standard Material: Zincalume® steel.
  • Upgrade Option: Colorbond® steel.
  • Durability: Pioneer Water Tanks are designed for harsh conditions and are built to last.
  • Warranty: 20-year conditional warranty on the tank and liner.

Pioneer Tanks have these additional features:

  • AQUALINER® Fresh: The only antimicrobial tank liner in the world.
  • PIONEER V-LOCK® tank wall profile: Provides the strength of corrugated steel while minimizing stress.
  • Heavy-duty roof truss system: Manufactured for extreme conditions.
  • Recyclable: The steel used is fully recyclable.
  • Service Life: Pioneer tanks are designed with a 30-year service life in mind.
  • Corrosion Resistance: They are designed to be highly resistant to corrosion

Above Ground, Corrugated Steel

​by SBS Tanks

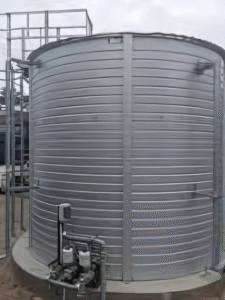

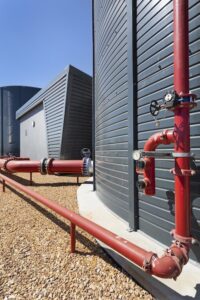

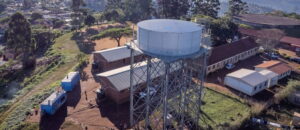

SBS Fire Protection Tanks
SBS Fire Protection Tanks
SBS Fire Protection Tanks
SBS Fire Protection Tanks

We are a global business focused on providing innovative solutions to combat the challenges of water security.

Our vision is to grow our global footprint, become internationally recognized for our premium solutions, and partner with businesses around the world, enabling them to utilize water and financial resources more effectively.


We support the achievement of the global Sustainable Development Goals (SDGs) including water and sanitation for all, economic growth, sustainable consumption and production and climate change.


Our Team


We believe that what is good for the world, is good for business. We continually challenge ourselves to ensure that our solutions best serve the needs of our clients and the communities we serve. Our management team members embrace the SBS® principles, commit whole-heartedly to leading the members of the SBS® family to work smart and build for better. Every day.


SBS Fire Protection Tanks
SBS Fire Protection Tanks
SBS Fire Protection Tanks
SBS Fire Protection Tanks
SBS Fire Protection Tanks
SBS Fire Protection Tanks
SBS Fire Protection Tanks
SBS Fire Protection Tanks

SBS Tanks

What Sets Us Apart?

  • Technologically advanced modular design
  • International ISO Compliance: ISO:9001 & ISO:45001
  • Professional accreditation and affiliations
  • Global Footprint offering end-to-end excellence in design, fabrication and installation
  • Relational Focus – Long-term partnerships with clients, suppliers and communities
  • Social Impact – We are dedicated to employee and community development and transformation
  • We Build for Better, Work Smart and Commit Wholeheartedly.


SBS Tanks - Our story


About SBS Community

At SBS® we believe that our purpose is to activate the potential in individuals, businesses, and communities. We do good through doing good business. In a time where many are solely focused on profit, we put people first, both in our business and in the communities around us. We partner with our clients assisting them to better support the communities they serve.


Through our Build for Better Initiative, we use our profile to share the good in our world, networking with NGO’s and citizens doing good works.


Our Corporate Social Investment (CSI) allow us to do more for the communities we serve, and we seek out opportunities to Build for Better.

  • ISO 9001:2015 Certificate
  • ISO 45001:2018 Certificate
  • Occupational Health & Safety Policy
  • Environmental Policy
  • QPM-003 Quality Policy

Above-Ground Tanks

Models & Sizes

Above-Ground Tank Guide Specification

Dry Hydrant Detail Drawing



Applications

Agricultural

Commercial

Community

Domestic

Fire protection

Liners

Mining

Municipal

Zincalume Water Tanks

Rainwater Tanks

Residential Tanks

Water Conservation

General

News and Insights

Press



CEO Wheelchair Challenge

For the third year in a row, the CEO of The SBS Group, Delayne Gray spent 14 hours of his day in a wheelchair on 30 March 2023, as part of the Little Eden CEO Wheelchair Challenge. This included attending a breakfast meeting at a local restaurant where Gray tested out the accessibility of bathroom facilities for wheelchair users – finding them impossible to navigate.



SITE SPECIFIC ENGINEERING

We offer a site-specific structural design calculation package (SDCP), stamped by a professional engineer licensed to practice in the project location. This ensures each tank is built to the location’s specific requirements and complies with local ordinances and laws, protecting all parties. Site specific tanks may incorporate thicker metal wall sheets or roof panels, stiffeners, heavy duty anchors, and other components to satisfy the local seismic, wind speed and live load requirements. We take engineering very seriously for the safety and security of all parties involved.

SBS Tanks is superior in design, quality, and support, and Georgia Water Tanks provides the best service in the Georgia. Our 20-year warranty on structural components is the strongest of any company like it. Georgia Water Tanks adds on to the parts-only warranty, so the WARRANTY INCLUDES LABOR.


Underground Fiberglass

Underground Fiberglass

by Fiberglass Tank Solutions

Tanks are be custom built for any fire protection design. We understand the requirements of fire protection systems, and manufacture our tanks to National Fire Protection Association (NFPA) standards.

By providing a dedicated source of water required by local codes in residential development, FGT Solutions fiberglass tanks are a preferred way to have access to large volumes of water. The tank provides unseen protection for the residents, yet is easily accessible for fire and municipal vehicles. FGT Solutions tanks are also used for commercial fire protection due to the inherent water tight properties of fiberglass and the large volume capacities.


NFPA-22 Panel Tanks

NFPA-22 Panel Tanks

by HISHI TANK

HISHITANK™ is a trusted name backed up by more than 50 years of design. The tank is composed of fiberglass-reinforced plastic panels, supported by an external steel frame, and sealed with gaskets between each panel.

Flexibility

Since the tank is composed of a combination of panels, it can be designed in a variety of ways. This makes it possible to install the tank in spaces where it would normally be difficult for a tank to do so, as well as to make effective use of the space.

Panel Strength

The panel strength is designed such that stress is distributed equally throughout the tank. Each project is computer analyzed, confirming displacement of all panels, and stress to any part of the panels. 10 year warranty.


Altitude Valves & Float Valves  by Cla-Val

Altitude Valves & Float Valves

by Cla-Val

The Global Leader in Automatic Control Valves

Cla-Val fire protection products provide highly accurate and reliable service in the most critical of applications. Known for dependability and superior performance, Cla-Val fire protection products can be found in nearly any type of facility on or off shore, including oil platforms, FPSOs, refineries, power plants, chemical storage facilities, mines, tunnels, aviation facilities, high-rise office and residential buildings, hospitals and historic landmarks.​

Cla-Val fire products are UL and ULC listed and have Factory Mutual approval along with other industry approvals and certifications. Our products are suitable for fresh water and seawater service, and are available in a wide range of materials, including exotic materials such as Nickel Aluminum Bronze, Super Duplex Stainless Steel and Titanium. No matter how challenging your requirements are, Cla-Val has the fire protection product you need to protect lives and property.

We recommend the model 610 - 01 for most applications. The reduced port prevents low pressures in the supplying water main, while still filling faster than the fire pump can draw.
